Barlin Times can be your excellent choice for 360 degree rotating solution and customized design. Below only shows specification for our standard slip ring model, please do not hesitate to contact us if there are some other special technical requirements.

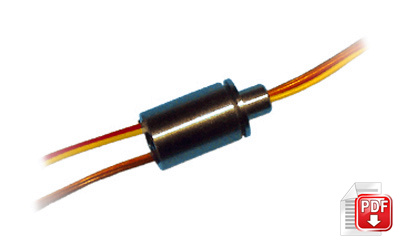

CAPSULE SLIP RING(8MM DIAMETER)

Capsule slip ring (8.3mm diameter) has solved a key problem for those who require very small dimension to pass better signal and current with 360 degree. This kind of slip ring mainly used in camera device.

Download

CAPSULE SLIP RING(12MM DIAMETER)

Capsule slip ring ( 12.5mm diameter ) adopt gold to gold contact materials to make sure long life time. The circuits for this slip ring could be up to 12 rings at present. Signal and current combination is available.

Download

CAPSULE SLIP RING(16MM DIAMETER)

Capsule slip ring for 16mm diameter has the main feature of compact design. Continuous transmission of signal and/or data under 360 degree unrestrained rotation for this slip ring is optional.

Download

CAPSULE SLIP RING(18MM DIAMETER)

Capsule slip ring for 18mm diameter use advanced standard military degree surface processing technology to meet the demand of every end user. This type of slip ring is mainly used for application of robotics, medical machine.

Download

CAPSULE SLIP RING(22MM DIAMETER)

Capsule slip ring for 22mm size could do circuits from 1-36 rings with standard 2A. This type of slip ring can pass Ethernet, USB, RS, Canbus, video, sensor, power, control,etc. Higher IP degree and metal housing are available.

Download

CAPSULE SLIP RING(35MM DIAMETER)

Capsule slip ring for 35mm diameter series enjoys the biggest advantage for multi-circuits ( 76 rings ) with metal housing. This slip ring now is widely used in turntable application to pass current or signal.

Download

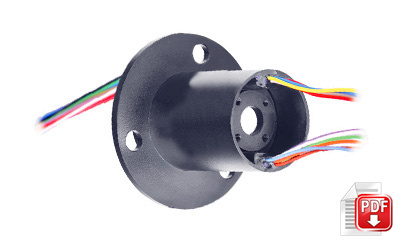

CAPSULE WITH THROUGH BORE

The standard diameter of capsule with through bore slip ring is 24.8mm with 2-7mm through hole, it adopts advanced standard military degree surface processing technology to meet the demand of every customer.

Download

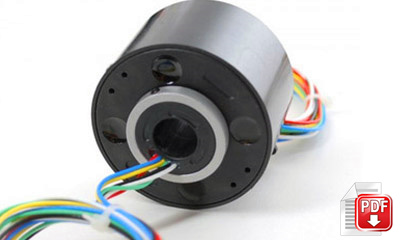

THROUGH BORE SLIP RING

Through hole slip ring series are slip ring with through bore. This type of slip ring are designed for being installed with flange on a sleeve bracket. Adopt advanced fiber brush technology and precious metal multi-contacting.

Download

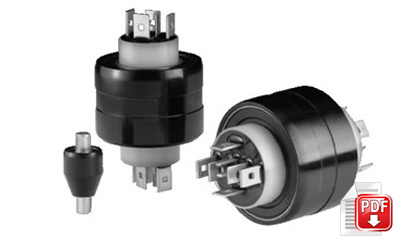

MERCURY SLIP RING

Mercury slip ring is the slip ring with mercury contacting materials. It has same performance just like other electrical sliprings to transmit signal and power between stator side and rotor side of different industry equipment.

Download

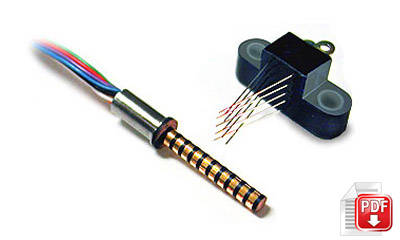

SEPARATE SLIP RING

Separate slip ring mainly consists of two parts separately--rotor and brush block. The rotor part can has through bore type, and this slip ring uses for liquid channel, pneumatic channel or shaft assembly.

Download

WIND TURBINE SLIP RING

Wind turbine slip ring is used for wind turbine application only. Different design and big current are available. Barlin Times slip ring enjoys excellent performance of low temperature resistant and high protection degree.etc.

Download

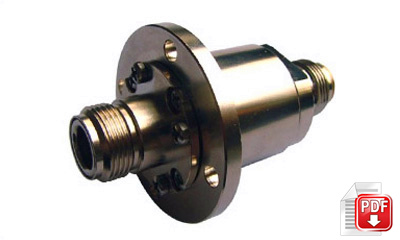

COAX ROTARY JOINT

Coax rotary joint can be an element which installed on the cable or instrument as transmitting or breaking the line of electrical connections. The max frequency range reach up to 40GHz (or higher ) analog signal and high speed digital signal.

Download
