Through Bore Slip Ring

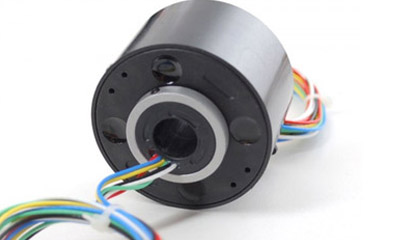

Through bore slip rings (also known as "through hole slip ring") are slip ring with through bore, this series are designed for being installed with flange on a sleeve bracket, also they totally meet with continuous transmission of power and/or signal under 360 degree unrestrained rotations. This kind of slipring use hollow shaft that applies the best advanced fiber brush technology and precious metal multi-contacting, low noise, low contact pressure and maintenance free. Barlin Times standard through bore size could be from 12.7mm- 190mm are optional, the standard circuits are 6 rings, 12 rings, 18 rings and 24 rings are available, the current can be alternative from 2A-800A. Standardized & modularized design, we could fully customize the best suitable product according to the special requirement of customer in different applications.

If you have specific customized requirement, please feel free to consult us so that our sales engineer could recommend the most suitable product to you for you reference.

Specifications:

Product Model
ID*OD(mm)
Circuits
Current Rating
Work Speed
12*38
1-6
2A
0-300RPM
12.7*56
1-24
5A/10A/15A
0-500RPM
25.4*86
1-24
5A/10A/15A
0-500RPM
38.1*99
1-24
5A/10A/15A
0-500RPM
50*119
1-24
5A/10A/15A
0-500RPM
60*135
1-24
5A/10A/15A
0-500RPM
80*160
1-24
5A/10A/15A
0-500RPM
96*185
1-24
5A/10A/15A
0-500RPM
150*250
1-24
5A/10A/15A
0-500RPM
190*320
1-24
5A/10A/15A
0-500RPM



Features:

  • Modular design & compact design.
  • Transmit various analog and digital signal.
  • Low wear and long work life time.
  • Compatible with data bus protocols.
  • 360 degree continuous rotary power transmission or data signal.



Options:

  • Current & Voltage
  • Circuits
  • Hollow shaft size, outer diameter and length
  • Work speed
  • Housing material and color
  • Protection degree
  • Lead wire exit direction
  • Lead wire length
  • Connector type
  • Signal and power transmitted single or together



Applications:

  • Radar, antenna, robotics.
  • Turn table, rotary sensor.
  • Engineering machinery equipment, cable wheel, test machine.
  • Packing machine, medical equipment.
  • Handling process control equipment.
  • Military equipment.
  • Wind turbine generator.
  • Emergency lighting machine, exhibition/display equipment.
